GitLab

This guide will walk you through connecting your GitLab repositories to MFE Orchestrator.

Prerequisites​

  • An active GitLab account (or access to a self-hosted GitLab instance)
  • Access to at least one project or group
  • Permissions to create Personal Access Tokens

Step 1: Navigate to Code Repositories​

  1. Go to Code Repositories in MFE Orchestrator alt text
  2. Click the Add Repository button alt text
  3. Select GitLab as your provider alt text

Step 2: Create a Personal Access Token (PAT)​

A Personal Access Token is required to authenticate MFE Orchestrator with your GitLab account.

2.1 Access Token Settings​

  1. Go to GitLab and click on your avatar (top right corner)
  2. Select Edit profile or Preferences
  3. In the left sidebar, click on Access Tokens
  4. Click Add new token
GitLab.com vs Self-Hosted
  • For GitLab.com, go to: https://gitlab.com/-/profile/personal_access_tokens
  • For self-hosted GitLab, use your instance URL: https://your-gitlab-instance.com/-/profile/personal_access_tokens

2.2 Configure Token Settings​

Fill in the token configuration:

  • Token name: Enter a descriptive name (e.g., "MFE Orchestrator")
  • Expiration date: Set an expiration date
    • Recommended: 90 days or custom date
    • For security, avoid tokens without expiration dates

2.3 Required Token Scopes​

Critical: Select the Correct Scopes

Make sure to select these exact scopes for MFE Orchestrator to function properly:

In the Scopes section of the token creation dialog, configure the following permissions:

1. Configure API Scope

  1. Find the api checkbox in the scopes list
  2. Check the api checkbox

This grants complete read/write access to the API, including all groups and projects, the container registry, and the package registry - required for full integration with MFE Orchestrator

2. Configure Read Repository Scope

  1. Scroll down to find the read_repository checkbox
  2. Check the read_repository checkbox

This grants read-only access to repositories - required for fetching repository content

3. Configure Write Repository Scope

  1. Continue scrolling to find the write_repository checkbox
  2. Check the write_repository checkbox

This grants read-write access to repositories - required for managing deployments and commits

Quick Check

After selecting all scopes, verify that you have checked:

  •  api
  •  read_repository
  •  write_repository

2.4 Generate the Token​

  1. After selecting all required scopes, click Create personal access token
  2. Important: A dialog will appear with your token at the top of the page
  3. Copy the token immediately and save it securely, you won't be able to see this token again!

Step 3: Configure Connection in MFE Orchestrator​

Now that you have your PAT, return to MFE Orchestrator to complete the connection.

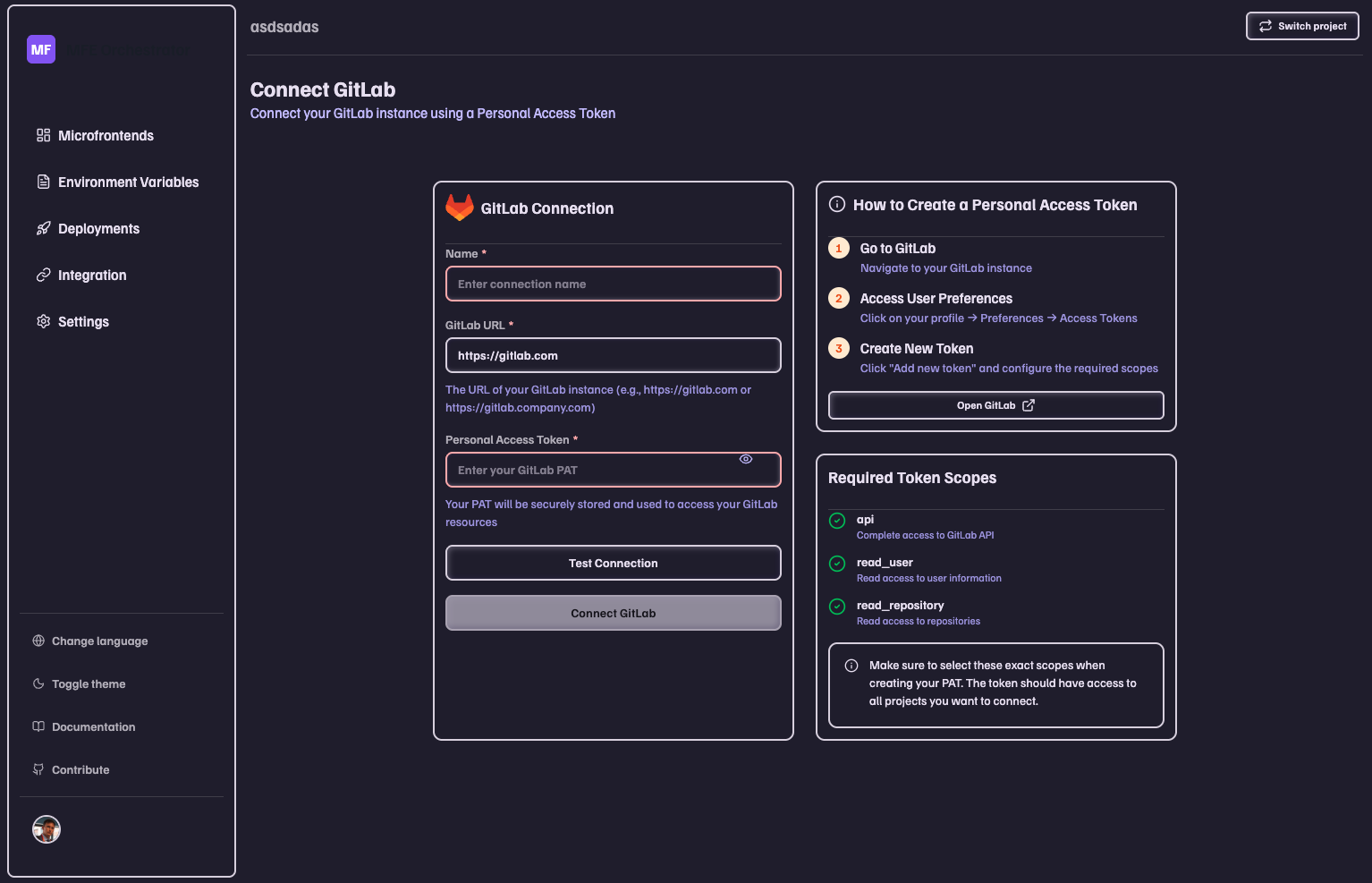

3.1 Fill in Connection Details​

In the Add Repository dialog, enter the following information:

  1. Name: Enter a descriptive name for this connection

    • Example: "My GitLab" or "Company GitLab"
    • This helps you identify the connection if you have multiple repository sources

  2. GitLab URL: Enter your GitLab instance URL

    • For GitLab.com, use: https://gitlab.com
    • For self-hosted GitLab, use your instance URL: https://your-gitlab-instance.com

  3. Personal Access Token: Paste the PAT you created in Step 2

    • Copy and paste the full token
    • Make sure there are no extra spaces

3.2 Test and Save the Connection​

Before saving, verify that everything is configured correctly clicking on Test Connection button

Connection Test Success

If the test is successful, you'll see a green checkmark and a success message. If it fails, double-check your GitLab URL and PAT.

  1. Once the test is successful, click Connect GitLab
  2. Your GitLab connection is now active!

Troubleshooting​

Connection Test Fails​

If the connection test fails, check the following:

  • Invalid GitLab URL: Verify that the GitLab URL is correct (e.g., https://gitlab.com for GitLab.com or your self-hosted instance URL)
  • Insufficient Permissions: Ensure you selected all three required scopes (api, read_repository, write_repository)
  • Expired Token: Check if your PAT has expired and create a new one if needed
  • Network Issues: Verify that you have internet connectivity and can access GitLab
  • Self-Hosted GitLab: If using a self-hosted instance, make sure MFE Orchestrator can reach your GitLab server (check firewall rules)

Token Permissions Error​

If you see a permissions error after connecting:

  1. Go back to GitLab - User Settings - Access Tokens
  2. Find your MFE Orchestrator token
  3. Click Revoke and create a new token
  4. Ensure all required scopes are selected (api, read_repository, write_repository)
  5. Update the token in MFE Orchestrator settings

Cannot Access My Repositories​

If your repositories don't appear or you can't access them:

  • Verify that you have at least Developer role in the project/group
  • Make sure the token has the correct scopes selected
  • Check that the repositories are not archived or deleted
  • If using group/organization name, verify it matches exactly the GitLab group path

Self-Hosted GitLab Issues​

For self-hosted GitLab installations:

  • SSL Certificate Errors: Ensure your GitLab instance has a valid SSL certificate
  • Firewall: Make sure MFE Orchestrator can access your GitLab instance (port 443 for HTTPS)
  • Version Compatibility: Check that your GitLab version supports Personal Access Tokens (GitLab 8.8+)

Security Best Practices​

Token Security

Follow these best practices to keep your account secure:

  • Never share your Personal Access Token with anyone
  • Use specific scopes - only grant the permissions that are needed
  • Set expiration dates - tokens should expire after 90 days or less
  • Rotate tokens regularly - create new tokens periodically
  • Revoke immediately if compromised - if you suspect a token has been exposed, revoke it right away and create a new one
  • Use separate tokens for different services - don't reuse the same PAT across multiple integrations

Need Help?​

If you encounter any issues or need assistance:
