Your own pipeline templates

When MFE Orchestrator creates a repository from a template, it copies a pipeline into it: the GitHub workflow, the .gitlab-ci.yml or the azure-pipelines.yml described in the other pages of this section. By default those pipelines come from the official template-pipelines repository.

A project can point at a repository of its own instead, so every repository created afterwards gets the pipelines your team maintains: your registry, your scans, your naming.

Set it up

1. Make sure the project has a code repository connection that reaches the repository holding your pipelines.

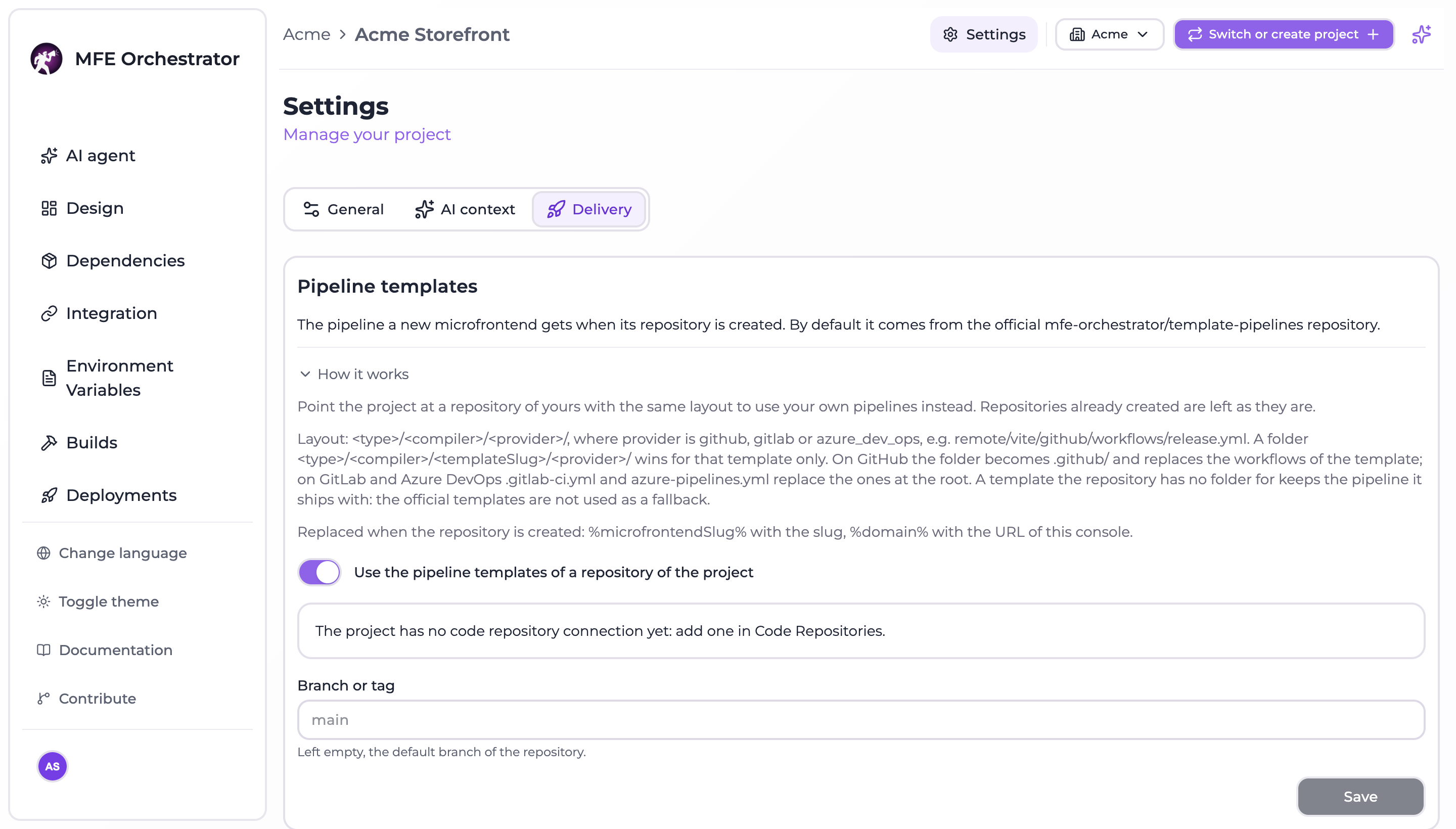

2. Open the project Settings from the project menu and go to the Delivery tab.



3. Turn on Use the pipeline templates of a repository of the project.

4. Pick the Connection and the Repository. Only the repositories the connection reaches are listed.

5. Optionally fill Branch or tag. Left empty, the default branch of the repository is read.

6. Click Save.

To go back to the official pipelines, turn the switch off and save.

Only an owner of the project, or an owner or administrator of its organization, can change it. Repositories that already exist are left as they are: the setting applies to the ones created from now on.

The same setting is available to the Maestro assistant and to MCP clients as the project_pipelines_set tool, which asks for confirmation before it runs.

The layout

Your repository has the same layout as template-pipelines:

<type>/<compiler>/<provider>/                 # e.g. remote/vite/github/
<type>/<compiler>/<templateSlug>/<provider>/  # optional, for one template only

• type and compiler are those of the template: host or remote, and vite, webpack, single-spa, micro-lc or generic.
• provider is github, gitlab or azure_dev_ops.
• A folder with the slug of a template wins over the one without it, for that template only.

What is copied depends on the provider:

Provider	The folder	Result in the new repository
GitHub	workflows/ and the other files of the folder	The folder becomes .github/ and replaces the workflows of the template
GitLab	.gitlab-ci.yml	Replaces the file at the root
Azure DevOps	azure-pipelines.yml	Replaces the file at the root

For example, one release workflow for every Vite remote on GitHub:

remote/vite/github/workflows/build-and-deploy.yml

:::caution No fallback to the official pipelines A template your repository has no folder for keeps the pipeline it ships with. The official template-pipelines are not used as a fallback for the project: if the repository you picked is missing the folder of a template, that template's own pipeline is kept. :::

Placeholders

Two placeholders are replaced when the repository is created, on the three providers:

Placeholder	Replaced with
%microfrontendSlug%	The slug of the microfrontend, as it appears in the console
%domain%	The base URL of the console, without /api

Start from a copy of the official folders and edit them: they already carry both placeholders and the publish step, as shown in GitHub Actions, GitLab CI and Azure Pipelines.

When the repository cannot be read

The pipelines are read before anything is created at the provider. If your repository cannot be read at the branch or tag you set, the creation is refused with PIPELINE_SOURCE_UNAVAILABLE, naming the repository and the reason, and nothing is created. Fix the repository or the ref, or switch back to the official pipelines, and try again.

The setting itself is refused when:

Code	Cause
PIPELINES_REPOSITORY_REQUIRED	The connection or the repository is missing
PIPELINES_REPOSITORY_INVALID	The connection is not one of the project, or cannot reach the repository
PIPELINES_REF_INVALID	The branch or tag is not a valid name: letters, digits, dots, dashes, underscores and slashes, without .., a leading dash, a trailing slash or a trailing .lock
PIPELINES_OWNER_REQUIRED	You are not an owner of the project or an administrator of its organization
