Store builds on Azure Blob Storage

MFE Orchestrator supports three ways of authenticating against Azure Blob Storage. Pick one and follow the matching section.

Method	When to use it
Connection string	Quickest to set up; grants access to the whole storage account
Shared key (Api Key in the console)	Account name + key, scoped to one container
Azure AD (Enterprise Application)	Recommended for production — a service principal with a role assignment you control

Prerequisites

• An Azure subscription
• Permission to create storage accounts and, for the Azure AD method, app registrations

Step 1: Create the storage account and container

1. In the Azure portal, create a Storage account (or reuse one).
   • Performance: Standard is fine
   • Redundancy: your call; LRS is sufficient for rebuildable artifacts
2. Inside it, open Data storage → Containers and create a container, e.g. microfrontends.
3. Set the container's Public access level to Private.

:::tip Keep the container private MFE Orchestrator reads blobs server-side with your credentials and streams them to browsers itself. The container never needs public access, and no CORS rules are required. :::

Step 2: Choose an authentication method

Option A — Connection string

1. Open the storage account → Security + networking → Access keys.
2. Click Show keys and copy the Connection string for key1.

Simple, but the connection string grants full access to every container in the account, and rotating the account key invalidates it. Fine for a trial; prefer Azure AD for production.

Option B — Shared key

From the same Access keys page, copy:

• The Storage account name
• The Key value

Scoped to the container you name in MFE Orchestrator, but still derived from an account-level key.

Option C — Azure AD (recommended)

1. Microsoft Entra ID → App registrations → New registration. Name it e.g. mfe-orchestrator-storage. No redirect URI is needed.
2. Note the Application (client) ID and Directory (tenant) ID from the overview page.
3. Certificates & secrets → New client secret. Copy the secret Value immediately — it is shown once. Note the expiry date and set a reminder to rotate.
4. Grant the app access to the container:
   • Open the storage account (or, for tighter scope, the container)
   • Access Control (IAM) → Add role assignment
   • Role: Storage Blob Data Contributor
   • Assign access to: User, group, or service principal → select your app registration

Scoping the role assignment at the container rather than the account is the least-privilege choice.

:::info Why Storage Blob Data Contributor The platform needs to read and write blobs. Reader is insufficient (uploads fail) and Owner grants more than is needed. Contributor at container scope is the right level. :::

Step 3: Add the storage in MFE Orchestrator

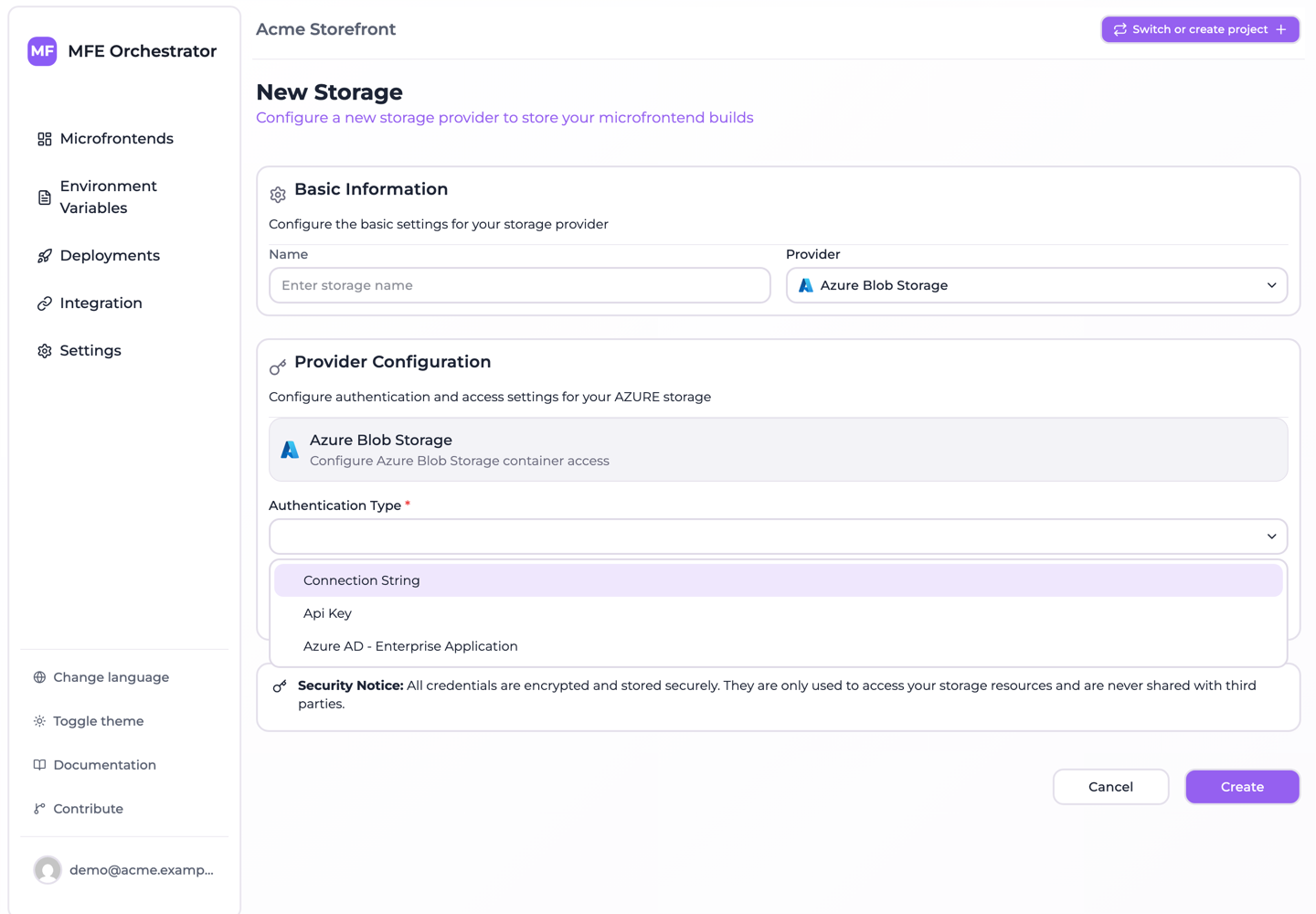

Go to Settings → Storages → New Storage and select Azure Blob Storage. The fields depend on the Authentication Type you pick:

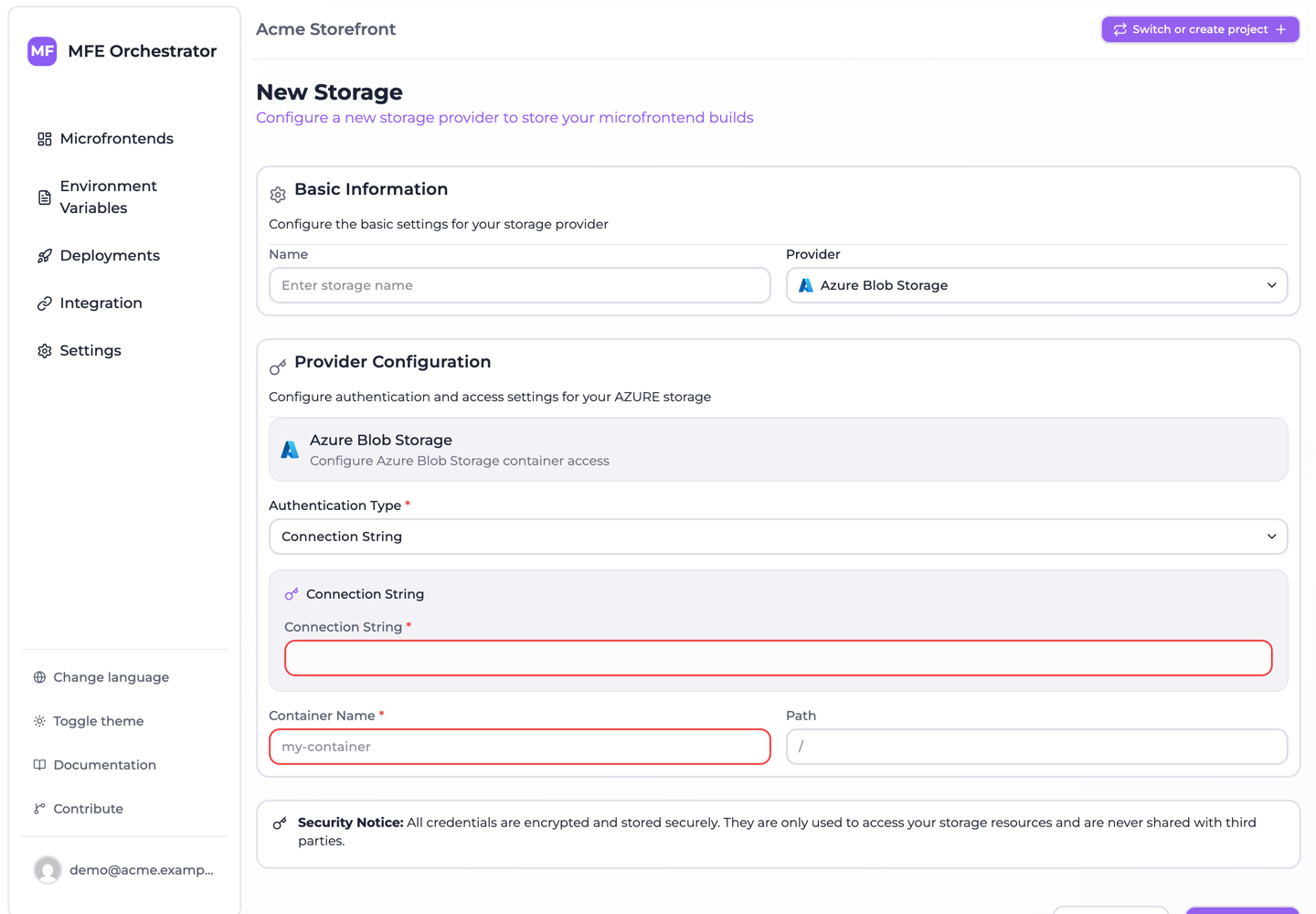

Connection String

Field	Value
Container Name	microfrontends
Connection String	From Option A
Path	Optional prefix inside the container

Api Key (shared key)

Field	Value
Container Name	microfrontends
Account Name	The storage account name
Account Key	From Option B
Path	Optional prefix inside the container

Azure AD - Enterprise Application

Field	Value
Container Name	microfrontends
Account Name	The storage account name
Tenant ID	Directory (tenant) ID
Client ID	Application (client) ID
Client Secret	The secret value from step C3
Path	Optional prefix inside the container

Save.

Step 4: Point a microfrontend at it

Open a microfrontend, set Hosting type to Custom Source, select this storage, and save. New versions land at:

<path>/<projectSlug>-<projectId>/<microfrontendSlug>/<version>/…

Then deploy the environment.

Troubleshooting

AuthorizationPermissionMismatch (Azure AD)

The service principal has no suitable role on the container. Confirm the Storage Blob Data Contributor assignment exists and that it is scoped to the account or container you configured. Role assignments can take a few minutes to propagate.

AuthenticationFailed (shared key)

Usually a truncated or whitespace-padded account key, or a mismatch between the account name and the key. Re-copy both from the portal.

ContainerNotFound

The Container Name is wrong, or the container lives in a different storage account than the one your credentials point at.

Everything worked, then stopped

If you used Azure AD, check whether the client secret expired — this is the most common cause of a storage that worked for months and then failed. Create a new secret and update the storage.

Files upload but the app 404s

Check the Entry Point on the microfrontend. Vite Module Federation builds emit assets/remoteEntry.js; you can verify the layout by browsing the version prefix in Storage Explorer.

Secret rotation

Client secrets and account keys both expire or get rotated. When you rotate:

1. Create the new secret/key alongside the old one.
2. Update the storage in MFE Orchestrator.
3. Verify a file still serves.
4. Remove the old credential.

Doing it in that order avoids a window where serving is broken.
